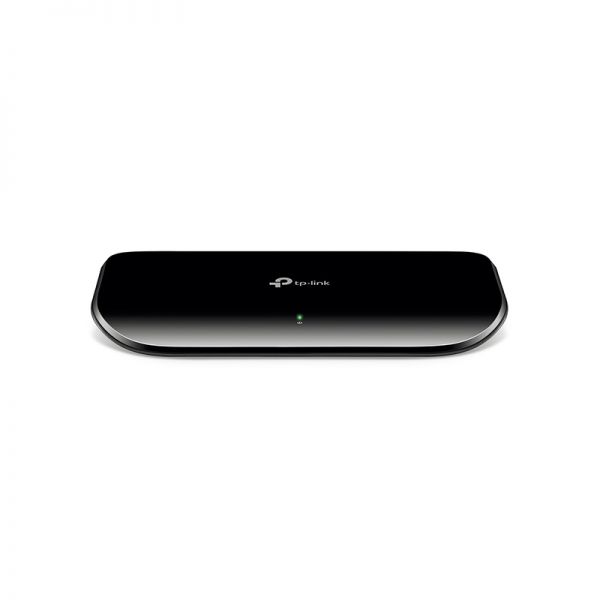

TP-Link 8-Port Gigabit Desktop Switch (TL-SG1008D)

TP-Link 8-Port Gigabit Desktop Switch (TL-SG1008D) Specification

Hardware Features

Standards and Protocols

IEEE 802.3i
802.3u
802.3ab
802.3x

Interface

8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity

Fanless

Physical Security Lock

No

External Power Supply

External Power Adapter
(Output: 9VDC / 0.6A)

Jumbo Frame

15 KB

Switching Capacity

16 Gbps

Dimensions ( W x D x H )

7.1 × 3.5 × 1.0 in.
(180 × 90 × 26 mm)

Max Power Consumption

4.6W

Max Heat Dissipation

15.8 BTU/h

Software Features

Transfer Method

Store and Forward

MAC Address Table

4K

Advanced Functions

Green Technology, saving power up to 80%
802.3x Flow Control, Back Pressure

Others

Certification

FCC, RoHs

Package Contents

8-Port Gigabit Desktop Switch TL-SG1008D
Power Adapter
Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
