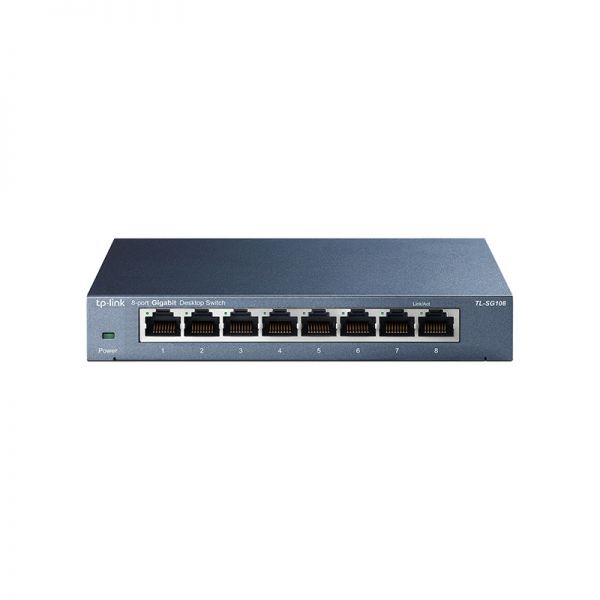

TP-Link 8-Port 10/100/1000Mbps Desktop Switch (TL-SG108)

TP-Link 8-Port 10/100/1000Mbps Desktop Switch (TL-SG108) Specification

Hardware Features

Standards and Protocols

IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p

Interface

8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

External Power Supply

External Power Adapter
(Output: 9VDC / 0.6A)

Buffer Size

1.5Mb

LED Indicator

System Power
Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )

6.2 x 4.0 x 1.0 in.
(158 x 101 x 25 mm)

Max Power Consumption

3.3W

Max Heat Dissipation

11.3BTU/h

Performance

Packet Forwarding Rate

11.9Mpps

MAC Address Table

4K

Packet Buffer Memory

1.5Mb

Jumbo Frame

16KB

Software Features

Advanced Features

Green Technology, saving power up to 82%
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method

Store and Forward

Others

Certification

CE, FCC ,RoHS

Package Contents

8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
