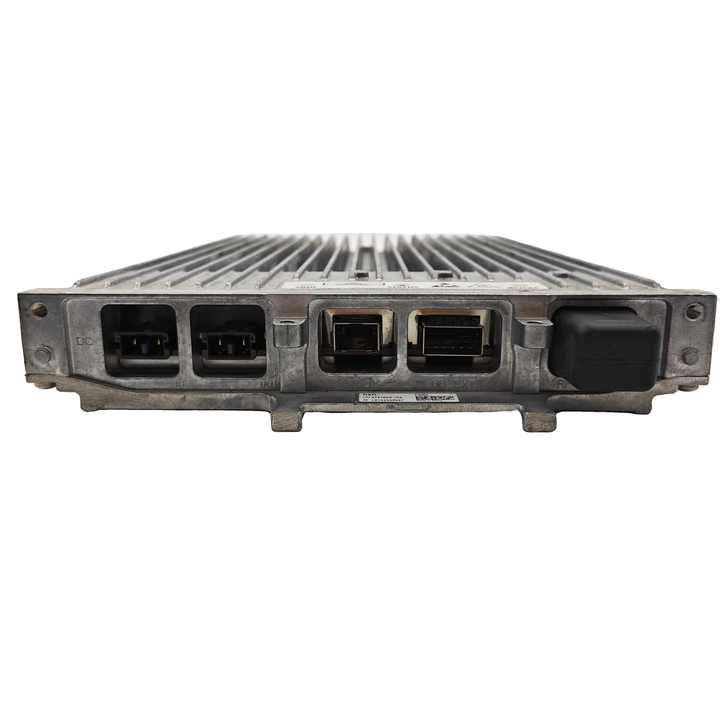

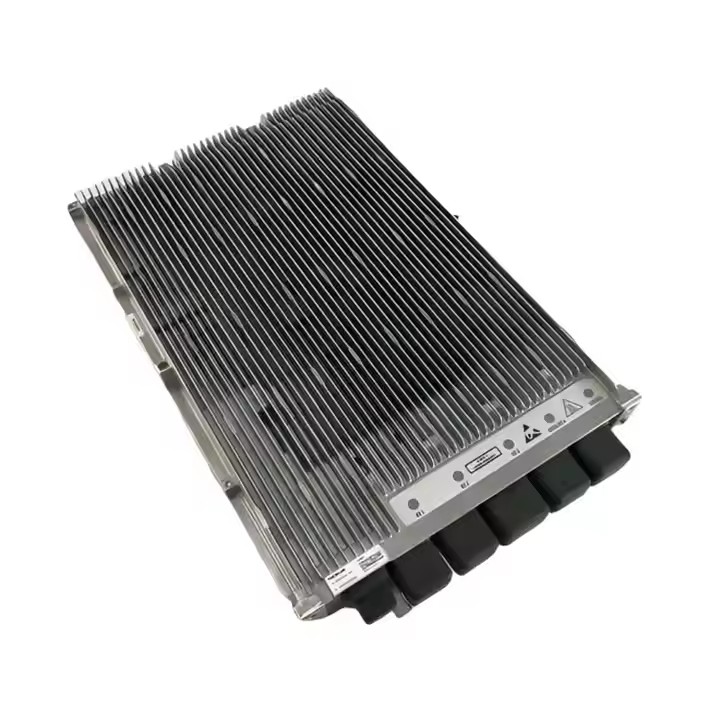

Nokia FBBC 472797A Baseband Capacity Extension Sub-Module

Brand Name: Nokia
Model Name: FBBC
Part Number: 472797A
Type: Basebands
Network: 4G, 3G
Place of Origin: China
Application: Specific for FSMF, Telecom
Condition: Used
Stock: In stock
Delivery Time: 7-15 days
Warranty: 1 Year
Single gross weight: 3.1kg
Description: Nokia Flexi FBBC 472797A.101 Baseband Capacity Extension Sub-module for FSMF
Overview

Flexi Baseband Extension Module (FBBC) provides additional capacity to the BTS increasing both baseband capacity and RF connectivity of Flexi Multiradio 10 BTSSystem Module. Compared to Flexi Capacity Extension Sub-Module (FBBA). FBBC provides the same capacity as FBBA (for LTE, 3x20 MHz or 6x10 MHz with 2x2 MIMO. enabling 450 Mbps downlink and 150 Mbps uplink data speeds). however, the FBBC hasfour optical OBSAI RP3-01 6 Gbps ports.


Up to two FBBCs are supported per one Flexi Multiradio System Module, and, 1U high,they are installed side by side in the bottom slots of the System Module. Adding capacitysubmodules in the field does not affect the ongoing traffic.


FBBC is powered by the System Module core module, and the second sub-module ispowered by the first one. Every extension sub-module is connected to the core modulethrough a QSFP connector. A BTS equipped with two FBBC sub-modules provides up totwelve optical RP3-01 6 Gbits connections towards RF units, Mixed confiaurations withFBBA are possible.


We have FBBC 472797A for sale, both refurbished and new, at prices typically up to 90% less than the original vendor price. Our super fast turnaround times and high quality stock located all around the world, mean we can ship same-day replacements exactly to where they are needed, minimising network downtime as much as possible.

Quick Spec

Flexi Baseband Extension Module(FBBC)



Flexi Baseband Extension Module (FBBC)dimensions and weight

ItemsWidth
Height
Depth
Weight
Value220 mm (8.7 in)
42 mm (1.6 in)
363 mm (14.3 in)
3.1 kg (6.83 lbs)

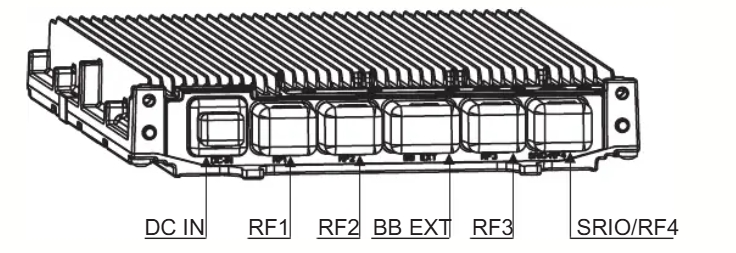

Flexi Baseband Extension Module (FBBC)interfaces

Name
Purpose
Number ofinterfaces
DC IN
FBBx power supply -48VDC input
1
SRIO/RF4
SRlO extensioninterface or RP3-01extension interface
1 x SRIO, 6 Gbits
BB EXT(QSFP)
Baseband extensioninterface towardsSystem Module
3 x RP3, 6 Gbit/s
1xRP3-01, 6Gbit/s
1 x SRIO, 6 Gbits
1 xI2C (SDA.SCL)
2 x Sync signals (FCB, BTScIk)
RF1/2/3
RP3-01 interfacetowards RF units
3 xOBSAI RP3-01(up to 6 Gbit/s)

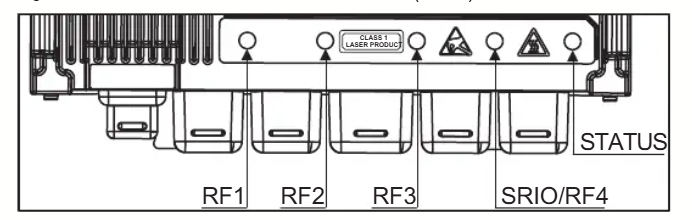

Flexi Baseband Extension Module(FBBC) LEDs

Flexi Baseband Extension Module (FBBC) LED Indications

Name
Notes
STATUS
Red/green &1Hz redblinking (Unitfault)
RF/EXT
RF Linkstatus
SRIO
SRIO Linkstatus

Get More Information

We have FBBC 472797A for sale, both refurbished and new, at prices typically up to 90% less than the original vendor price. Our super fast turnaround times and high quality stock located all around the world, mean we can ship same-day replacements exactly to where they are needed, minimising network downtime as much as possible. For used models, we have fully inspected and repackaged in our ESD and OEM compliant facility by our expert team and comes backed by a comprehensive warranty as standard.


Contact us now via Whatsapp: +86 136 9226 0946 or email: Contact@huatenmax.com.


Specification
• FBBC has the same capacity as FBBA
    • 3 cells @ 20 MHz or
    • 6 cells @ 10 MHz with 2TX and 2RX
• 4 optical ports in FBBC HW (OBSAI RP3 6 Gbps)• Total 12 ports with FSMF + 2 FBBC
• Can be used with FBBA
• RL60 SW enables one RP3 port in use
• RL70 SW enables four RP3 ports in use

FBBA/FBBC supports 3 cells @ 20 MHz with 2TX and 2RX
• Example configurations FSMF + two FBBCs (or FBBC + FBBA) can support, e.g.
    • 9 cells @ 20 MHz with 2TX and 2RX, or• 18 cells @ 10 MHz with 2TX and 2RX, or
    • 3 cells @ 20 MHz and 3 cells @ 10 MHz with 4TX and/or 4RX diversity, or
• Separate SW licenses needed for 4x2 TX MIMO and 4RX SW features
