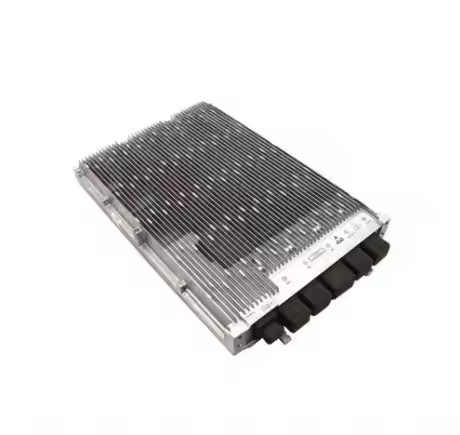

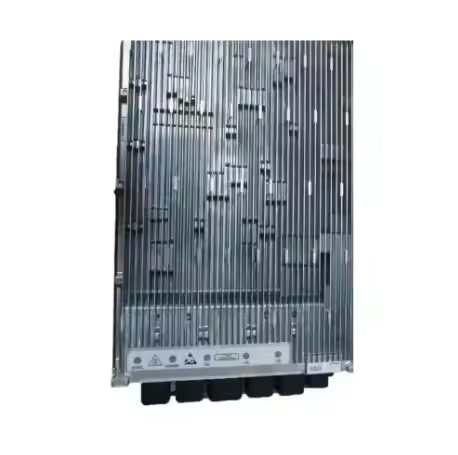

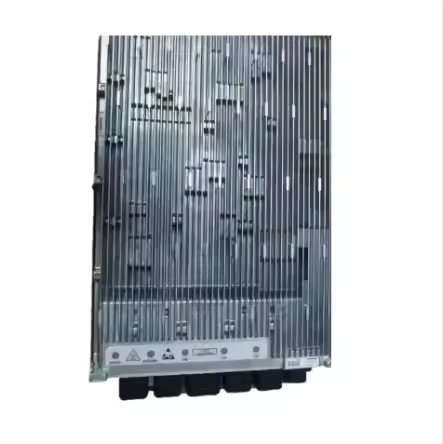

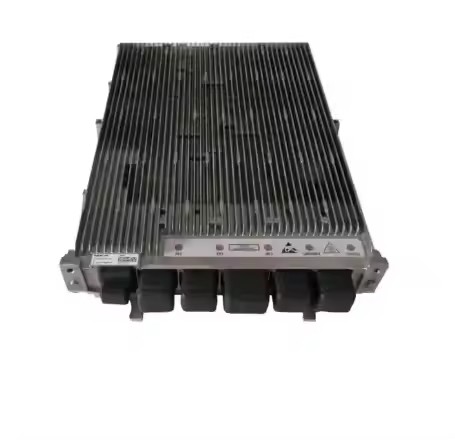

Nokia FBBA 472182A Capacity Extension Sub-Module

We have FBBA 472182A for sale, both refurbished and new, at prices typically up to 90% less than the original vendor price. Our super fast turnaround times and high quality stock located all around the world, mean we can ship same-day replacements exactly to where they are needed, minimising network downtime as much as possible.

The FBBA, like all of our hardware, is fully inspected and repackaged in our ESD and OEM compliant facility by our expert team and comes backed by a comprehensive warranty as standard.

As an accredited and approved used telecoms partner to hundreds of renowned global service providers, OEMs and systems integrators worldwide, you can always rely on TXO to help you expand and maintain your networks quickly and economically. Whether you require a brand new product or one that has been refurbished, we source only the highest quality and environmentally-green market equipment. This is all available at the best possible prices, passing the substantial cost benefits directly back to you.

The FBBA represents only one item available from our world class portfolio of hardware. This portfolio includes very well known industry names like Nokia, Siemens, Nortel, Ciena, Ericsson, Marconi, Alcatel, Lucent and many more. With almost one million parts in stock, and access to a further eight million through our partner network, we own one of the largest multi-vendor telecom inventories in the world—we are grateful to be able to share it with our clients.

Quick Spec

1.1 Introduction to the feature
The FBBA is a high capacity extension sub-module for the Flexi Multiradio SystemModule FSMF.

1.2 Benefits

End-user benefits
This feature does not affect the end-user experience
Operator benefits
The System Module FSMF capacity can be flexibly expanded

1.3 Reguirements

This feature requires Flexi Multiradio System Module release 3.

1.4 Functional description

The FBBA sub-module is an optional extension to the Flexi Multiradio BTS SystemModule.
One FBBA provides a hardware baseband capacity for up to three 20 MHz LTE cellswith 2x2 MIMO.
FBBA is 1U hiah and it is lP65 ingress protected.
FBBA operates at the temperature range from -35 to + 55 °C

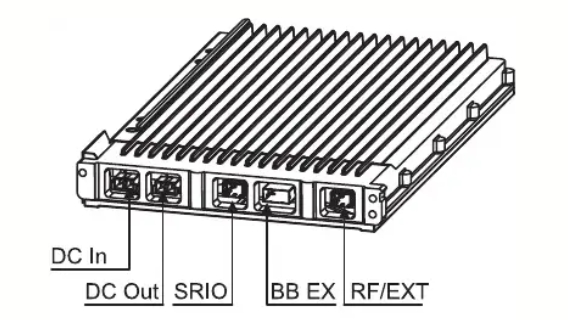

Presents the isometric view of the FBBA.

lsometric view of the FBBA

1.5 Interfaces
The FBBA provides the following external interfaces:

• One -48 VDC input
• One -48 VDC output
• One baseband extension interface for interconnecting FBBA and Flexi MultiradioSystem Module
• One SRl0 (Serial Rapid input/Output) interface for an external baseband extension.for example additional System Module
• One optical OBSAl RP3-01 interface with up to 6 Gbit/s towards RF Module orRemote Radio Head

1.6 LEDS

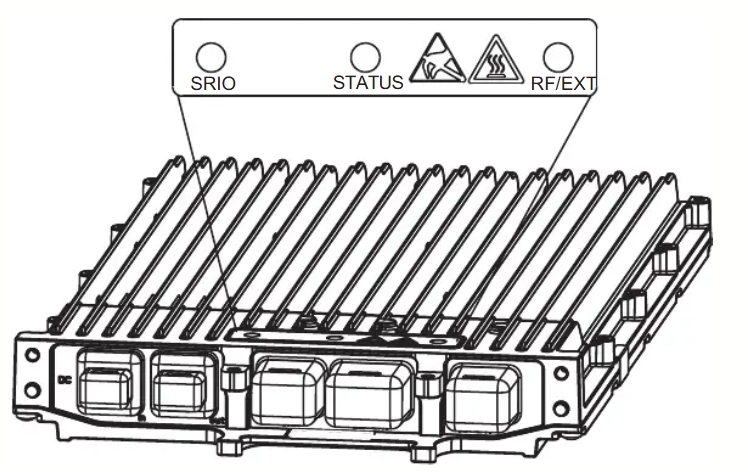

The FBBA has three tri-color LEDs on the front panel to indicate the operational statusof the sub-module and all fault conditions during operation.
The LED indications of the sub-module are listed and explained in the table Extension sub-module LEDs (from left to right).

For more information, see:

• Flexi Multiradio 10 Base Station System Module Description
• Flexi Multiradio Base Station and FlexiMultiradio 10 Base Station Optional ltemsDescription
• Cabling Flexi Multiradio 10 Base Station

1.7 System impacts

Interdependencies betweenfeatures
This feature is related with LTE947: FSMF Flexi Multiradio 10 System Module
Impacts on interfaces
This feature expands the Flexi Multiradio 10 Base Station with additional interfaces thaallow to create various configurations. For more information, see Creating LTE Configurations.
Impacts on network and network element management tools
This feature has no impact on network management and network element managementtools.
Impacts on system performance and capacity
New confiqurations are available

1.8 LTE972: Flexi Baseband Module FBBA management data

For information on alarm, counter, key performance indicator, and parameter docu-ments, see Reference documentation.
Alarms
There are no alarms related to this feature
Measurements and counters
There are no measurements or counters related to this feature
Key performance indicators
There are no key performance indicators related to this feature.
Parameters
There are no parameters related to this feature.

Get More Information

Do you have any question about the Nokia FBBA 472182A

Contact us now via Whatsapp: +86 136 9226 0946 or email: Contact@huatenmax.com.

High capacity System Module with multiradio capability

• Multiradio platform for GSM, WCDMA, LTE
• Up to 9x20MHz 2T2R LTE cells and Pay as You Grow -capacity expansion with extension sub-modules (1-2 FBBxs)
• FBBA and FBBC has the same capacity as FSMF core
• FBBA and FBBC can be mixed
• 1 optical ports in FBBA HW (OBSAI RP3/CPRI 6 Gbps)
• 4 optical ports in FBBC HW (OBSAI RP3/CPRI 6 Gbps)
• Total 12 optical ports with 2 FBBC
• Integrated high capacity Ethernet transport. Optional transport sub module for additional transport features
• Optional power distribution sub-module with four power outputs (-48V)
• IP65 Outdoor Module for different installation scenarios and use cases

• FBBC has the same capacity as FBBA
•     3 cells @ 20 MHz or
•     6 cells @ 10 MHz with 2TX and 2RX
• 4 optical ports in FBBC HW (OBSAI RP3 6 Gbps)
• Total 12 ports with FSMF + 2 FBBC
• Can be used with FBBA
• RL60 SW enables one RP3 port in use
• RL70 SW enables four RP3 ports in use

Full System Module Capacity With Two FBBCs Or FCCA & FBBC

• FBBA/FBBC supports 3 cells @ 20 MHz with 2TX and 2RX
• Example configurations FSMF + two FBBCs (or FBBC + FBBA) can support, e.g.
•     9 cells @ 20 MHz with 2TX and 2RX, or• 18 cells @ 10 MHz with 2TX and 2RX, or
•     3 cells @ 20 MHz and 3 cells @ 10 MHz with 4TX and/or 4RX diversity, or
• Separate SW licenses needed for 4x2 TX MIMO and 4RX SW features
