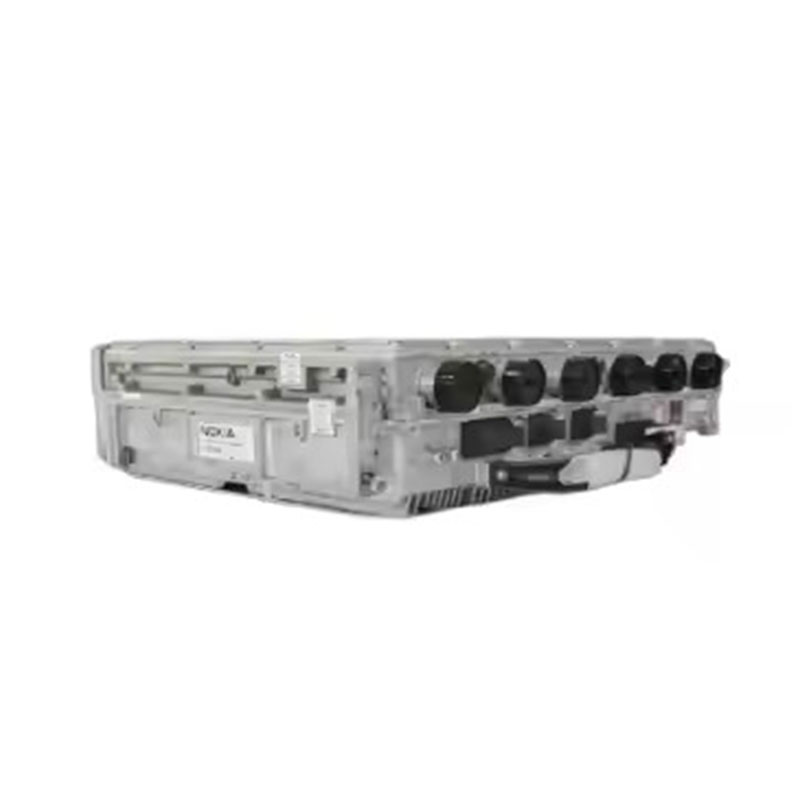

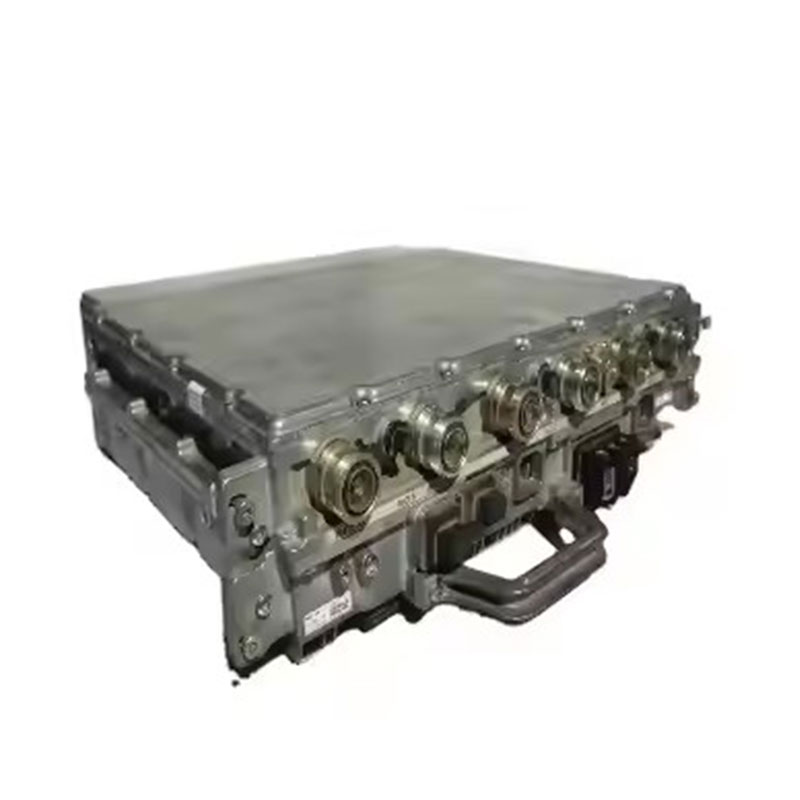

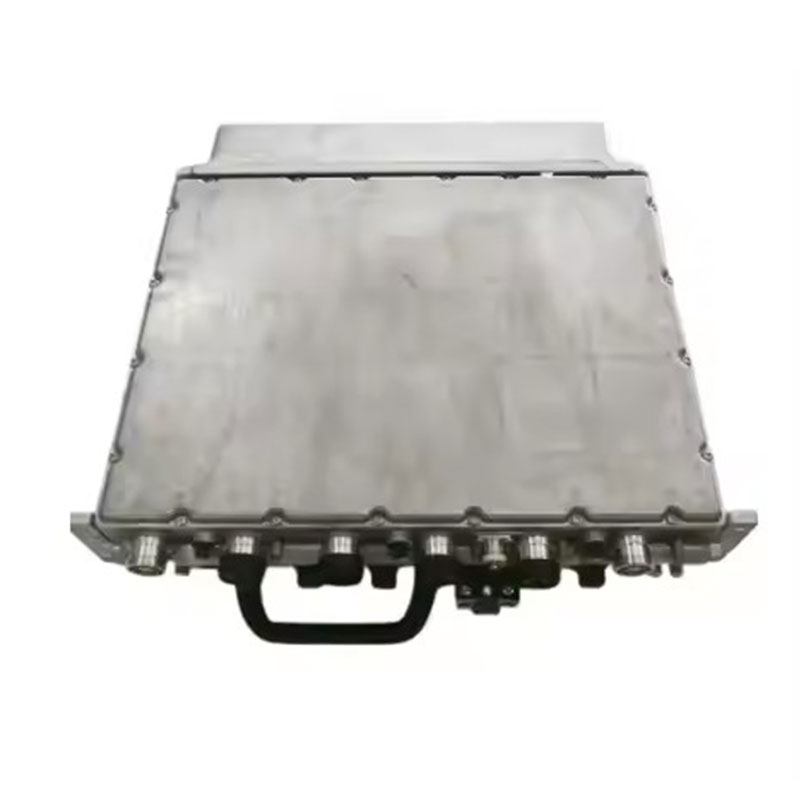

Nokia FRHF 472849A is a high-performance 2600MHz RF Module (RFM) designed for cutting-edge wireless infrastructure. This advanced equipment features 6 transmit (Tx) and 6 receive (Rx) paths, enabling superior network coverage, capacity, and reliability.
Optimized for 2600MHz frequency bands, it is perfect for telecom operators looking to enhance their 4G LTE networks or prepare for 5G integration. The FRHF 472849A204 ensures efficient data transmission, supporting high-demand applications and services. Its robust design and advanced technology make it an ideal solution for upgrading existing networks or deploying new wireless infrastructure. With Nokia's commitment to quality, this RFM stands as a testament to innovation in telecommunications, offering unparalleled connectivity and performance.
Quick Spec

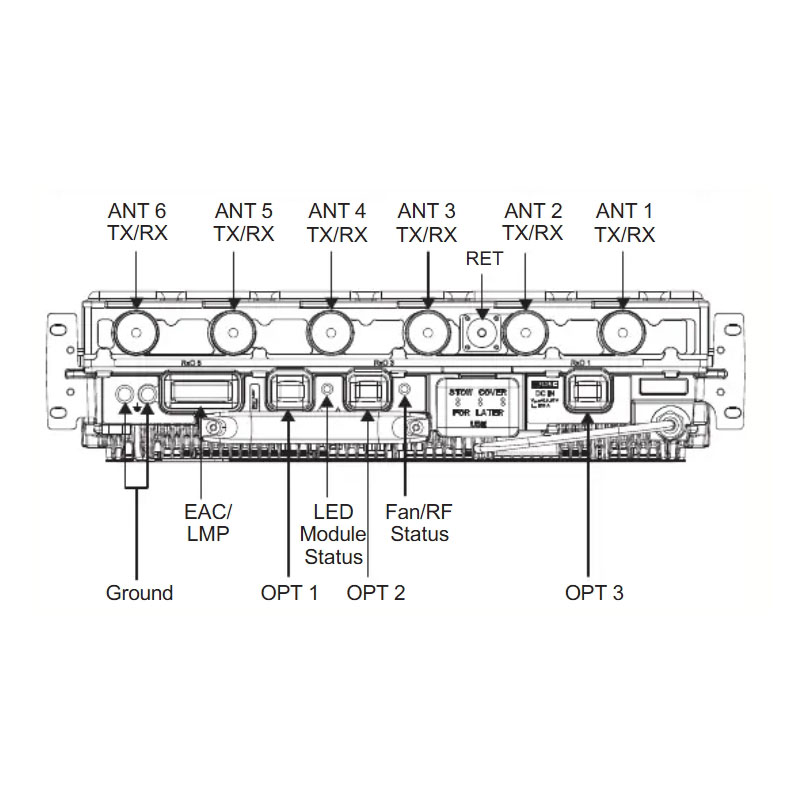

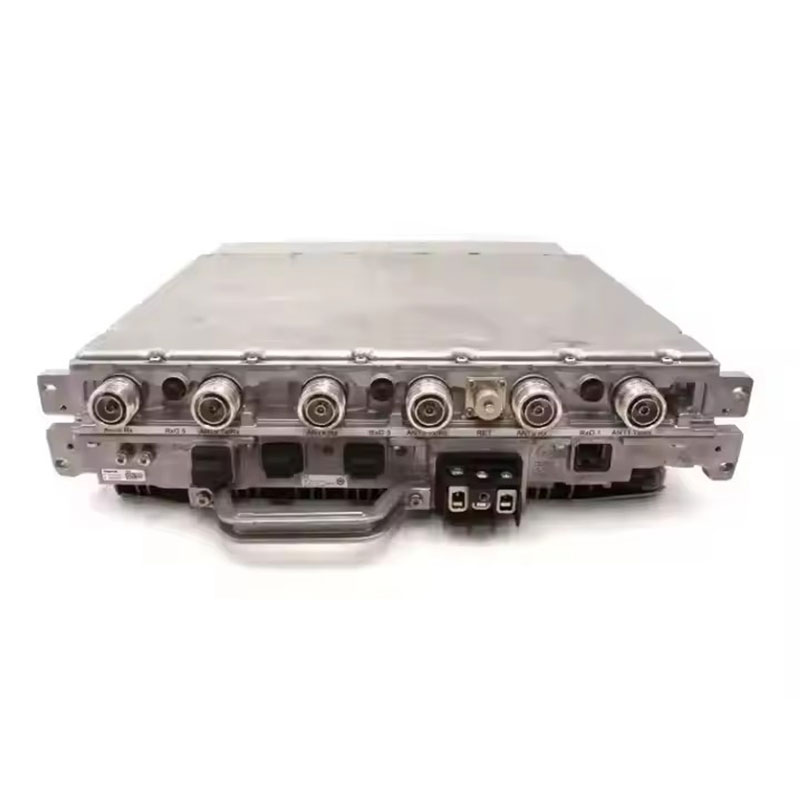

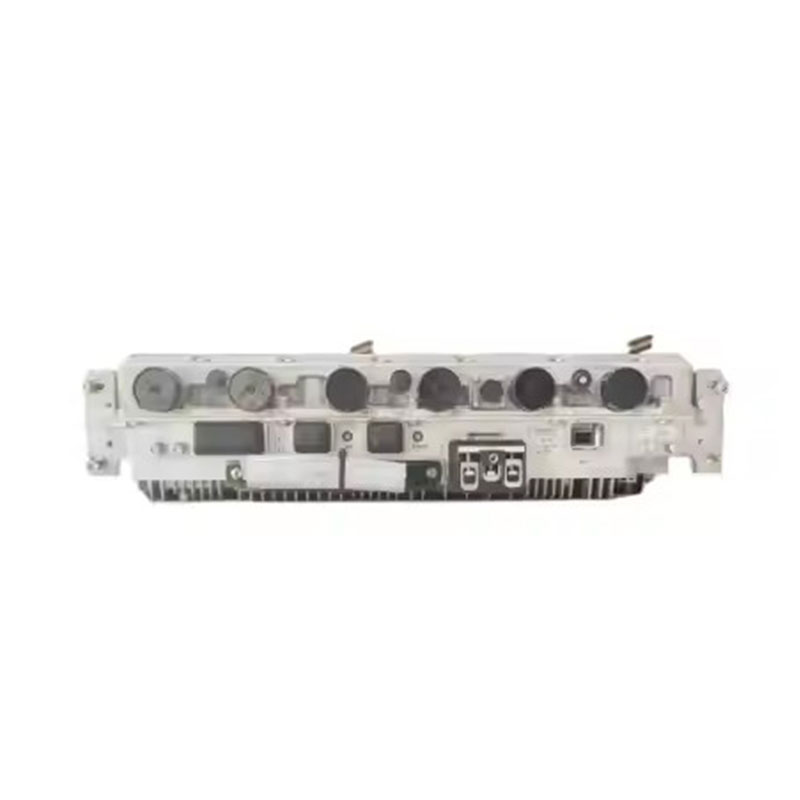

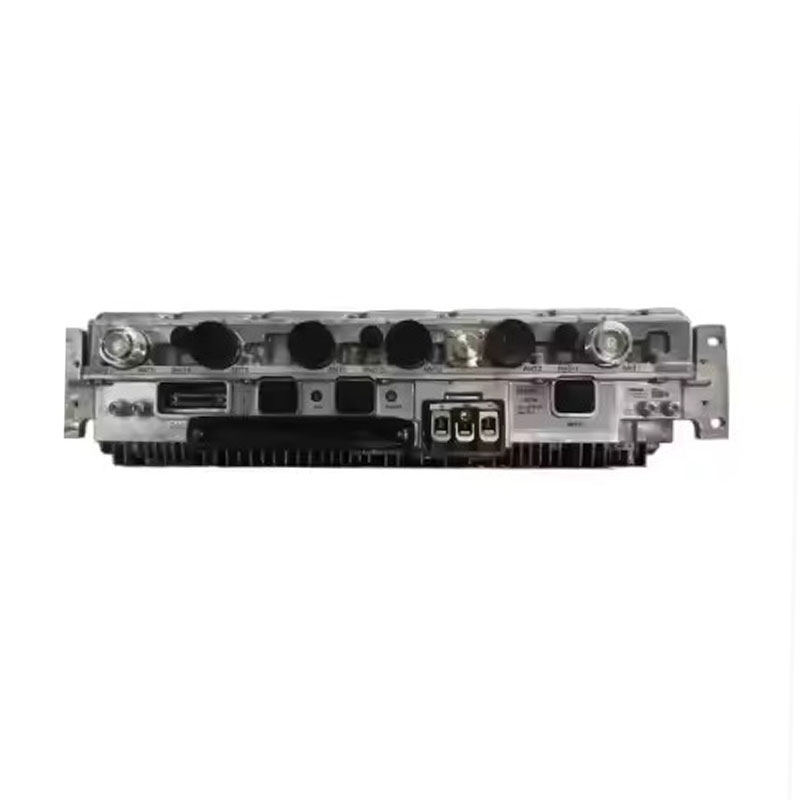

Interfaces
Interface
| Label on the HW
| Number of Interface
| Connector type
| Additional info
|
Power connector
| DC IN
| 1 | 3-pole screw terminal
| - |
Antenna connector
| ANT
| 6 | 7/16
| - |
Remote Electrical Tilt
| RET
| 1 | 8-pin circular
| - |
External Alarm Connection
| EAC
| 1 | MDR36
| - |
Optical interface
| OPT
| 3 | SFP
| 3 Gbps or 6 Gbps
|
Antenna Line Devices(ALDs) supportALD support via antenna ports
| Value
|
AISG
| 2.0 Main only
|
Legacy Siemens equipment
| No
|
CWA (for non-AlSG installations)
| No
|
Voltage
| 25 V Main only
|
Power per port
| 30 W |

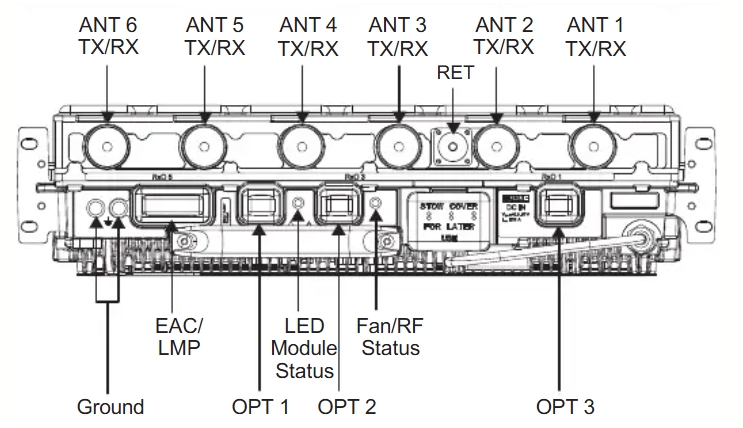

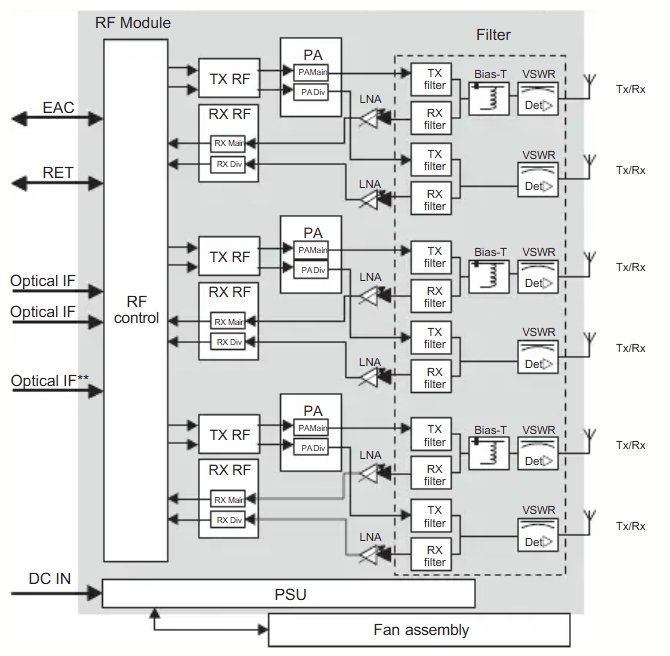

Functional block diagram
Electricalspecifications
Property
| Value
|
Nominal supply voltage
| -48.0 V DC
|
Nominal input voltage range
| -40.5 V DC to -57.0 V DC
|
Extended input voltage range
| -36.0 V DC to -40.5 VDC -57.0 V DC to -60.0 VDC |
RFHF Power consumption
Number of TXs
| RF output power perTX [W]
| Estimated power consumption [W] at 48VDC input at 23°C. Non-committedestimated values depend on the finalproduct HW and SW optimization with +/-10% margin. |
50% RF Load
| 100% RF Load
|
6
| 40 | 828
| 1148
|
| 20 | 574
| 748
|
Installation and mechanical specifications
Property
| Value
|
Installation options
| - stack/pole/wall installation
- directly on the wall installation
|
lP rating
| IP65
|
Related optional items
| - Flexi Pole Mounting Kit (FPKA/C)
- Pole Mounting Kit (VMPB)
|
Dimensions and weight
Property
| Value
| Dimensions orientation
|
Height
| 133 mm/ 3U (5.2 in.)
|
|
Depth
| Without front covers: 422 mm(16.6 in.)
With front covers: 560 mm(22.1 in.)
|
Width
| Without front covers: 447 mm(17.6 in.) With front covers: 492 mm(19.4 in.)
|
Weight
| 25 kg (55.1 lbs) |
Environmentalspecifications
Property
| Value
|
Maximum operational outdoor temperature in the shade (at constant high ambient temperature maximum output power might be limited) | +55°C(131°F)
|
Minimum operational temperature (includingcold start)
| -35°C(-31°F) |
FRHF LEDs LED color
| Description
| Alarm
|
Red, stable
| Critical alarm affecting thewhole RF module or all antenna carriers
| Fault
|
Red, blinking
| Operation degraded
- Major alarm affecting the whole RF Module
- Critical alarm affecting fans
- Major/Critical alarm affecting a module subcomponent or antenna carrier
| Major/critical alarm
|
Yellow, stable
| - Until software download begins
- The carriers are blocked from BTS
- There is no connection toany System Module
| No alarm
|
Yellow, blinking
| - Software download inprogress
- Configuration in progress: RF resources are being setup, but not yet activated
| No alarm
|
Green,stable
| - Software configuration iscomplete orsupervisory: RF resources activatedand transmission ispossible
- Working normally, noalarm on the RF Module
| No alarm
|
Green, blinking
| Software downloading and updating
| No alarm
|
Stable Red for less than 5 seconds and changes to Stable Yellow
| Switched ON, but the next conditions are not reached yet
| No alarm
|
Stable Red for less than 5 seconds
| The module is in the processof resetting
| No alarm
|
Periodic Red and Green
| Antenna line device faulty/degraded
| No alarm
|
Blinking Colors(Red, Yellow,and Green), each color stablefor 0.5 second
| Module highlighting (Flexi BTSSM functionality that can help identifying faulty module)
| No alarm |
RF Module fan/TX status LED: Red
| Atleastone fanis faulty ordegraded
| - |
RF Module fan/TX status LED: Green
| All fans are working
| - |
RF Module fan/TX status LED:Color set according to fanstatus, stable
| RF transmission is ON
| - |
RF Module fan/TX status LED: Color set according to fanstatus, blinking
| RFtransmission is OFF
| - |
