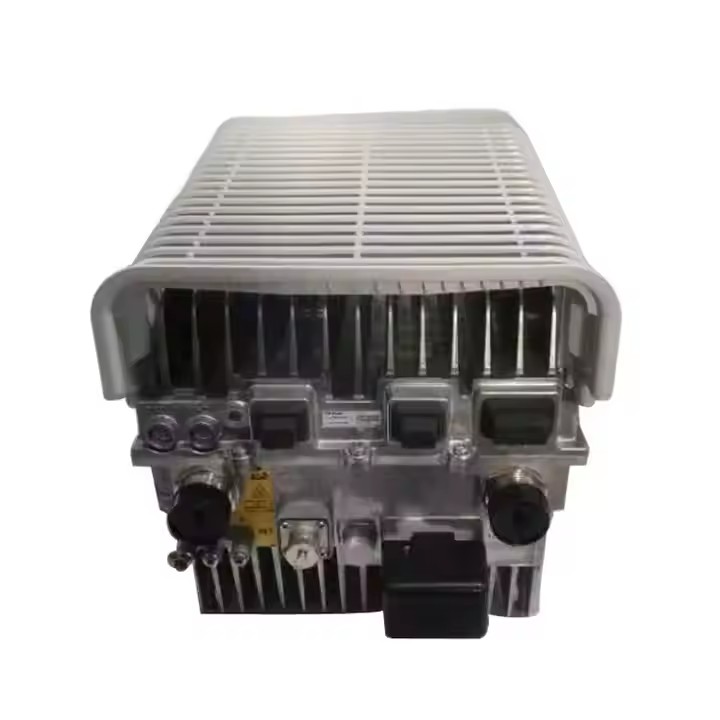

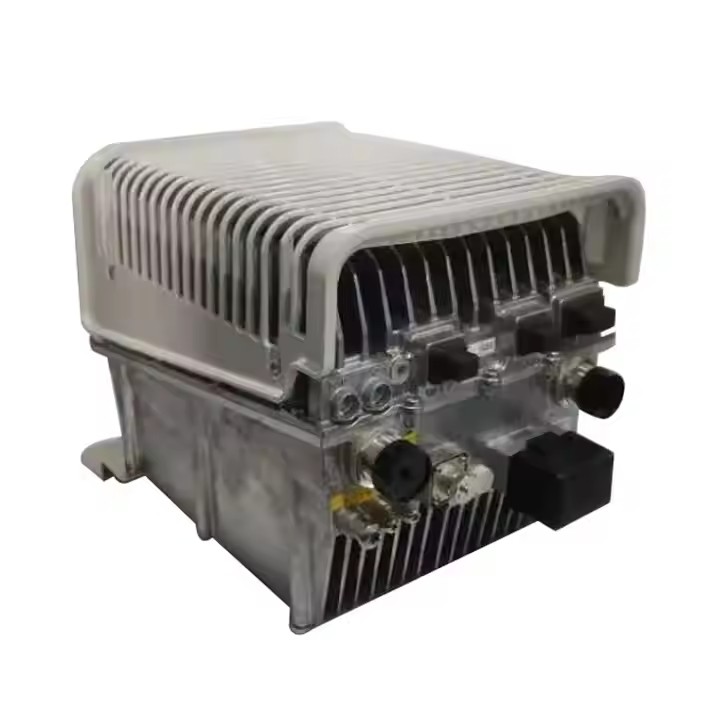

The Nokia 47142A.304 FXEB Flexi Multiradio Radio Frequency Module (FXxx) or RF Module, is a 3-branch multicarrier,multi-standard radio transceiver module. The module consists of three independent branches, capable of transmitting and receiving signals of multiple radio technologies concurrently.
Flexi Multiradio BTS GSM/EDGE modules are equipped with an integrated air guide plate providing full thermal compliance without casings. This allows installation of the modules without casings in Flexi cabinets and enclosed 19″ racks. Casings and covers are recommended in standalone 19″ racks (no cabinet) for safety reasons. Casings are not part of the FXxx delivery package. If the configuration requires casings, Flexi BTS Module Casing (EMHA) kits must be ordered.
Nokia 47142A.304 FXEB is in stock for sale. As an approved used telecoms partner to hundreds of global service providers, OEMs and systems integrators worldwide, you can rely on Huatenmax telecom to help you expand and maintain your networks cheaper and faster.
Quick Spec

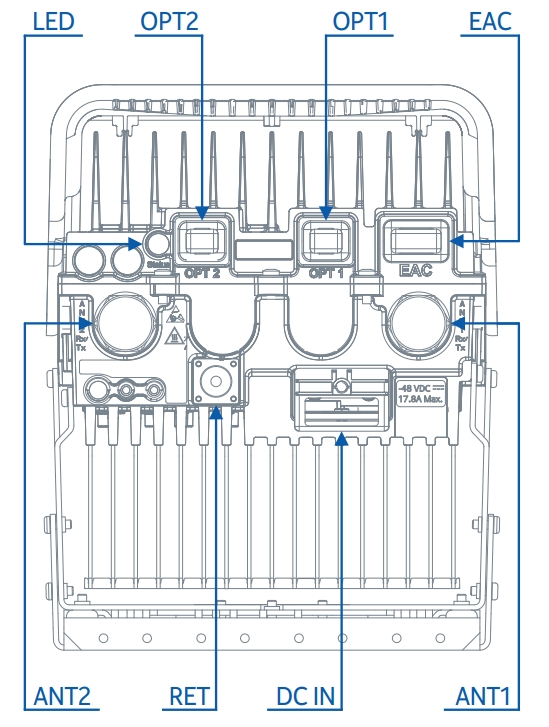

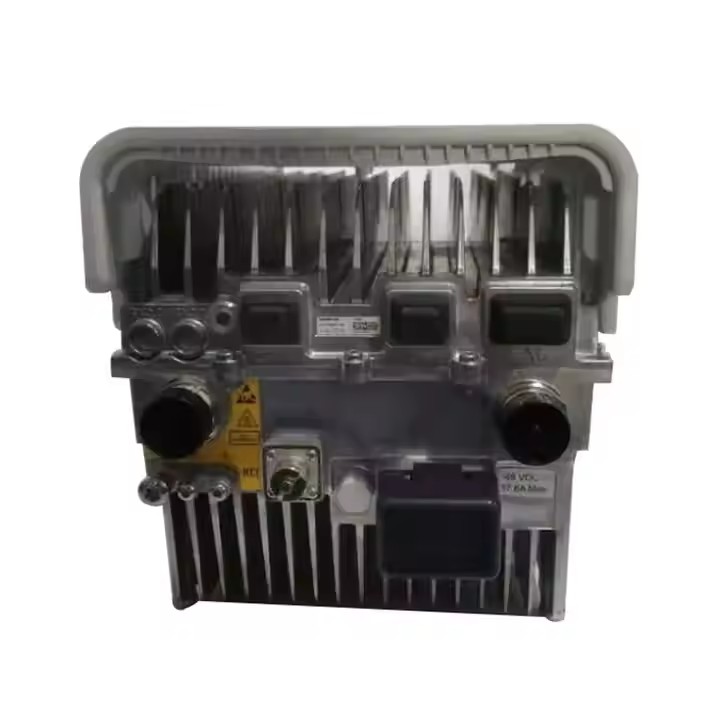

FHEB Interface
Interface
| Label on the HW | Number of interfaces | Connectot type | Additional information |
Power Connector
| DC IN
| 1 | 3-pole Screw-interminal
| -
|
Antenna connector
| ANT
| 2 | 7/16
| - |
Remote Electrical Tilt
| RET | 1 | 8-pin circular
| -
|
External Alarm Connection
| EAC
| 1 | D-sub MDR14
| -
|
Optical Interface
| OPT
| 2 | SFP
| 6 Gbps |
Antenna Line Devices (ALDs) support
ALD support via antenna ports
| Value
|
AISG
| ANT1, RET: AISG 2.0
|
Proprietary AISG 1.1
| No
|
CWA (for non-AISG installations)
| No
|
Voltage
| ANT1: 14.5 V RET: 14.5 V |
Power per port
| 15 W |

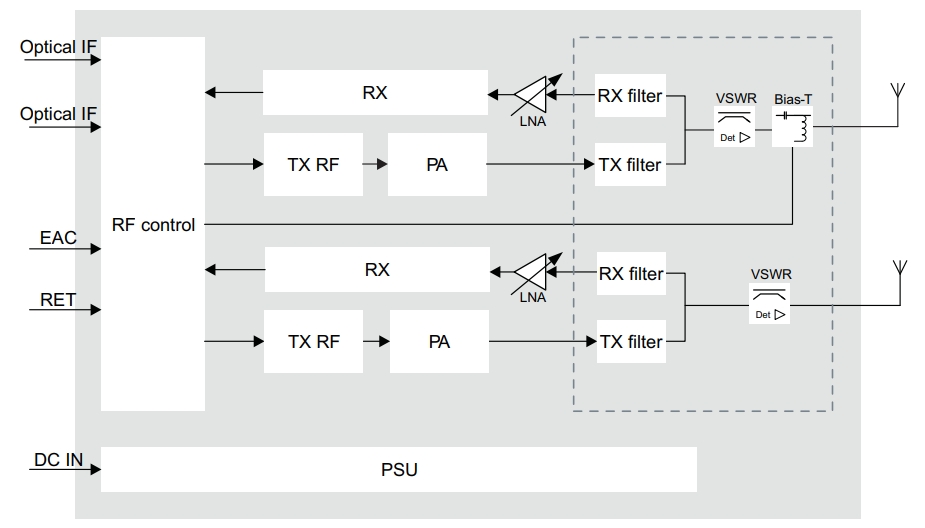

FHEB Functional block diagram
FHEB electrical specifications
Property
| Value
|
Nominal supply voltage
| -48.0 V DC
|
Nominal input voltage range
| -40.5 V DC to -57.0 V DC
|
Extended input voltage range
| -36.0 V DC to -40.5 V DC -57.0 V DC to -60.0 V DC |
FHEB power consumptionMode
| Configu
ration
| Output
power
per
carrier
[W]
| Estimated power consumption [W] at 48VDC input at 25°C.
Non-committed estimated values depend on the final
product HW and SW optimization with +/- 10% margin.
Average = (6h low hour load, 10h medium hour load and 8h
busy hour load) / 24h
|
Power
consum
ption
ETSI
202706
average
load
PRRH,
static
| Power
consum
ption
ETSI
202706
busy
hour
load PBH
RRH,
static
| Power
consum
ption
100%
RF
power
load
P100%
RRH
| Power
consum
ption
Typical
as 25%
TCH
load,
60%
DTX, 4
dB PC
| Power
consum
ption
Busy as
50%
TCH
load,
60%
DTX, 4
dB PC
| Power
consum
ption
Max
load (2%
GoS),
60%
DTX, 4
dB PC
|
GSM
| 1/1/1 | 20
| 538
| 538
| 538
| 538
| 538
| 538
|
| 2/2/2 | 20
| 547
| 567
| 655
| 546
| 549
| 553
|
| 4/4/4 | 20
| 884
| 1019
| 1267
| 777
| 801
| 829
|
| 8/8/8 | 15 | 973
| 1226
| 1521
|
|
|
|
LTE
| 1/1/1
2T2R
| 20+20
| 553
| 641
| 789
|
|
|
|
1/1/1
2T2R
| 40+40
| 689
| 831
| 1079
|
|
|
|
1/1/1
2T2R
| 60+60
| 875
| 1082
| 1462
|
|
|
|

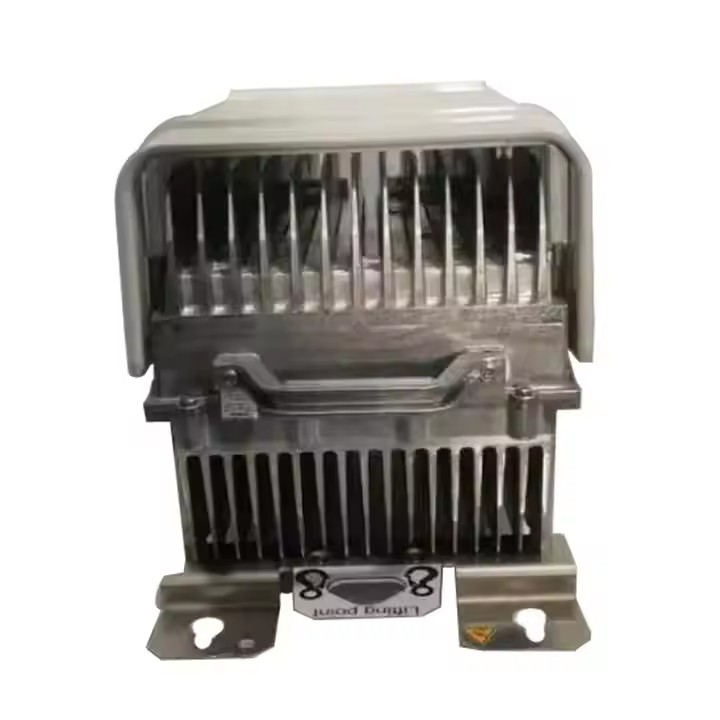

Installation and mechanical specifications
Property
| Value
|
Installation options
| - pole/wall installation
- directly on the wall installation
|
IP rating
| IP65
|
Related optional items
| - Flexi Pole Mounting Kit (FPKA/C)
|

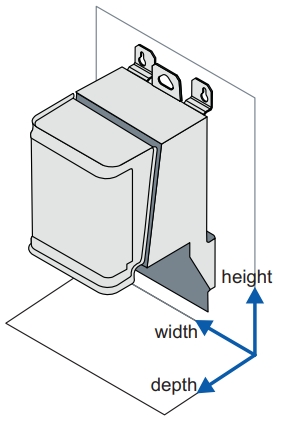

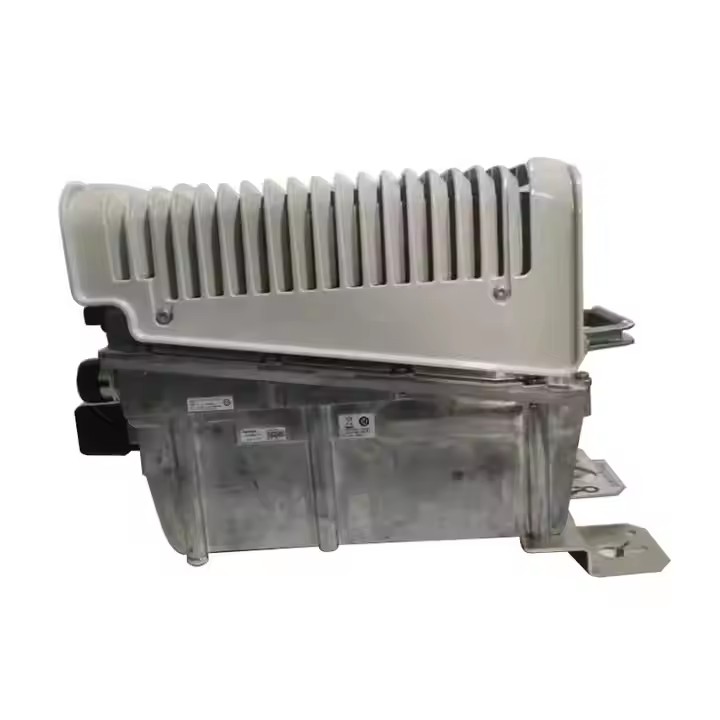

FHEB dimensions and weight
Property
| HW
version
| Value
| Dimensions orientation
|
Height
| A.101 A.102 | As delivered, cable tie point
recessed: 335.2 mm (13.2 in.) With lower mounting bracket in
the "FMFA" position: 571 mm
(22.5 in.) With lower mounting bracket in
the alternative "ALT" position:
621 mm (24.4 in.) |
|
A.103
| As delivered, cable tie point
recessed: 425.8 mm (16.8 in.) With upper and lower mounting
brackets: 572.1 mm (22.5 in.) |
|
Depth
| A.101 A.102 |
|
A.103
| 287 mm (11.3 in.)
|
Width
| A.101 A.102 |
|
A.103
| 256.7 mm (10.1 in.)
|
Weight
| A.101 A.102 |
|
A.103
| 16.3 kg (35.9 lb)
|
Volume
| A.101 A.102 |
|
A.103
| 19.1 l
|
FHEB environmental specifications
Property
| Value
|
Maximum operational outdoor temperature in
the shade, assuming wind speed is 3 m/s (at
constant high ambient temperature, maximum
output power might be limited) | +55°C (131°F)
|
Maximum operational outdoor temperature in
the sun, assuming wind speed is 3 m/s
| +50°C (122°F)
|
Environmental specifications
Property
| Value
|
Maximum indoor temperature, assuming wind
speed is 0 m/s (this is valid for fanless
products)
| +40°C (104°F)
|
Minimum operational temperature (including
cold start)
| -40°C (-40°F) |
FXEB LEDs
LED color
| Description
| Alarm
|
Red, stable
| Critical alarm affecting thewhole RF module or all antenna carriers
| Fault
|
Red, blinking
| Operation degraded
- Major alarm affecting the whole RF Module
- Critical alarm affecting fans
- Major/Critical alarm affecting a module subcomponent or antenna carrier
| Major/critical alarm
|
Yellow, stable
| - Until software download begins
- The carriers are blocked from BTS
- There is no connection toany System Module
| No alarm
|
Yellow, blinking
| - Software download inprogress
- Configuration in progress: RF resources are being setup, but not yet activated
| No alarm
|
Green, stable
| - Software configuration iscomplete orsupervisory: RF resources activatedand transmission ispossible
- Working normally, noalarm on the RF Module
| No alarm
|
Green, blinking
| Software downloading and updating
| No alarm
|
Stable Red for less than 5 seconds and changes to Stable Yellow
| Switched ON, but the next conditions are not reached yet
| No alarm
|
Stable Red for less than 5 seconds
| The module is in the processof resetting
| No alarm
|
Periodic Red and Green
| Antenna line device faulty/degraded
| No alarm
|
Blinking Colors(Red, Yellow,and Green), each color stablefor 0.5 second
| Module highlighting (Flexi BTSSM functionality that can help identifying faulty module)
| No alarm |
