Position：Home / Products / Networking Accessories / Modules & Cards / Juniper Transceivers

  • SRX-CFP-100G-LR4
  • SRX-CFP-100G-LR4

SRX-CFP-100G-LR4

Model:SRX-CFP-100G-LR4 - Juniper Security Transceivers
HuatenMax

Expertise Builds Trust

100+ Countries

6000+ Customers/Projects

CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts

Jim Huang

+86 136 9226 0946

Contact@huatenmax.com

Live Chat
Overview

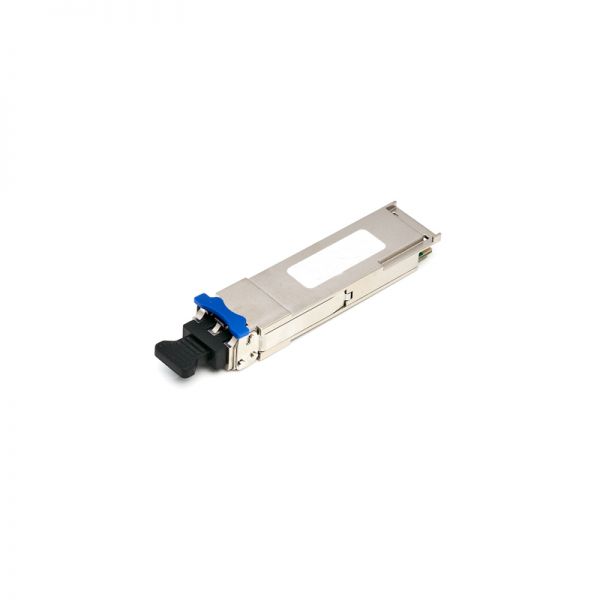

The Juniper SRX-CFP-100G-LR4 is a high-performance 100GE LR4 CFP Transceiver, compliant with IEEE 802.3ba standards. This transceiver is specifically designed to provide superior connectivity and robustness for advanced networking environments. It is supported by SRX-MIC-1X100G-CFP, ensuring seamless integration and reliable performance for high-speed data transfers.

Quick Spec

Brand Juniper
Product Name SRX-CFP-100G-LR4
Form Factor CFP
Data Rate 100Gbps
Standard IEEE 802.3ba
Compatibility SRX-MIC-1X100G-CFP

Product Features

  • ● High-speed 100Gbps data rate for fast connectivity
  • ● Compliant with IEEE 802.3ba standards
  • ● Supports long-reach (LR4) data transmission
  • ● Enhanced compatibility with SRX-MIC-1X100G-CFP
  • ● Robust design for reliable performance in demanding environments

Product Applications

  • ● Data Centers requiring high-speed and long-reach connectivity
  • ● Service Provider networks looking for robust and high-performance transceivers
  • ● High-performance computing environments needing reliable data transmission

Supported Options

Accessory Model
Transceiver Module SRX-MIC-1X100G-CFP
Fiber Optic Cable FC-100G-LR4
Mounting Bracket MB-100G-CFP

Compare to Similar Items

Model Differences
Cisco C1200-24P-4X Different form factor and compatibility
Arista QSFP-100G-SR4 Short-reach transmission, different standards
Brocade 100G-CFP-LR4 Different brand-specific integration

Get more information

Check Juniper SRX-CFP-100G-LR4 price and SRX-CFP-100G-LR4 datasheet, buy Juniper SRX-CFP-100G-LR4 Transceiver with best price and fast shipping. Free Live Chat are supported. For further details and pricing, contact us through Live Chat or email us at Contact@huatenmax.com.

Specification

SRX-CFP-100G-LR4 Specifications

Brand Juniper
Product Name SRX-CFP-100G-LR4
Type CFP Transceiver
Data Rate 100 Gbps
Form Factor CFP
Standard IEEE 802.3ba
Reach 10 km
Wavelength 1295 nm to 1310 nm
Connector LC Duplex
Operating Temperature 0 to 70��C
Power Supply 3.3V
Power Consumption 24 W (maximum)
Transmitter Type DFB Laser
Receiver Type PIN Photodiode
Bit Error Rate (BER) 10^-12
Distance 10 km over SMF
Application Data Center, Enterprise, and Service Provider
MTP Compliance No
DOM Support Yes
Support Supported by SRX-MIC-1X100G-CFP
Firmware Upgradable Yes
